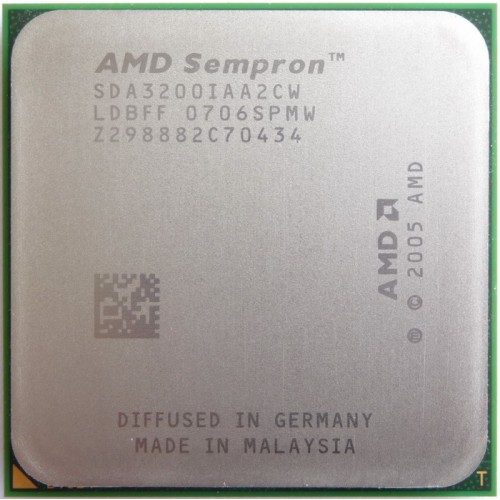

General information TypeCPU / Microprocessor Market segmentDesktop FamilyAMD Sempron Model number  ? 3200+ CPU part numbers

• SDA3200IAA2CN is an OEM/tray microprocessor
• SDA3200CNBOX is a boxed microprocessor with fan and heatsink

Stepping codesABBVF   LBBVF Frequency  ? 3200+ (rated)
1800 MHz (real) Bus speed  ? Dual-channel 333 MHz DDR2 SDRAM Memory controller
One 800 MHz 16-bit HyperTransport link (1.6GT/s) Clock multiplier  ? 9 Package940-pin lidded microPGA SocketSocket AM2 Introduction dateMay 23, 2006 Architecture / Microarchitecture MicroarchitectureK8 Processor core  ? Manila Core stepping  ? F2 Manufacturing process0.09 micron Data width64 bit The number of CPU cores1 The number of threads1 Floating Point UnitIntegrated Level 1 cache size  ? 64 KB 2-way set associative instruction cache
64 KB 2-way set associative data cache Level 2 cache size  ? 128 KB 16-way set associative exclusive cache MultiprocessingUniprocessor Features

• MMX instructions
• 3DNow! technology
• SSE / Streaming SIMD Extensions
• SSE2 / Streaming SIMD Extensions 2
• SSE3 / Streaming SIMD Extensions 3
• AMD64 / AMD 64-bit technology  ?
• EVP / Enhanced Virus Protection  ?

Integrated peripherals / components Integrated graphicsNone Memory controllerThe number of controllers: 1
Memory channels: 2
Supported memory: DDR2-667
Maximum memory bandwidth (GB/s): 10.7 Other peripheralsHyperTransport technology  ?  Electrical / Thermal parameters V core  ? 1.25V / 1.35V / 1.4V Maximum operating temperature  ? 55°C - 69°C Thermal Design Power  ? 59 Wat
